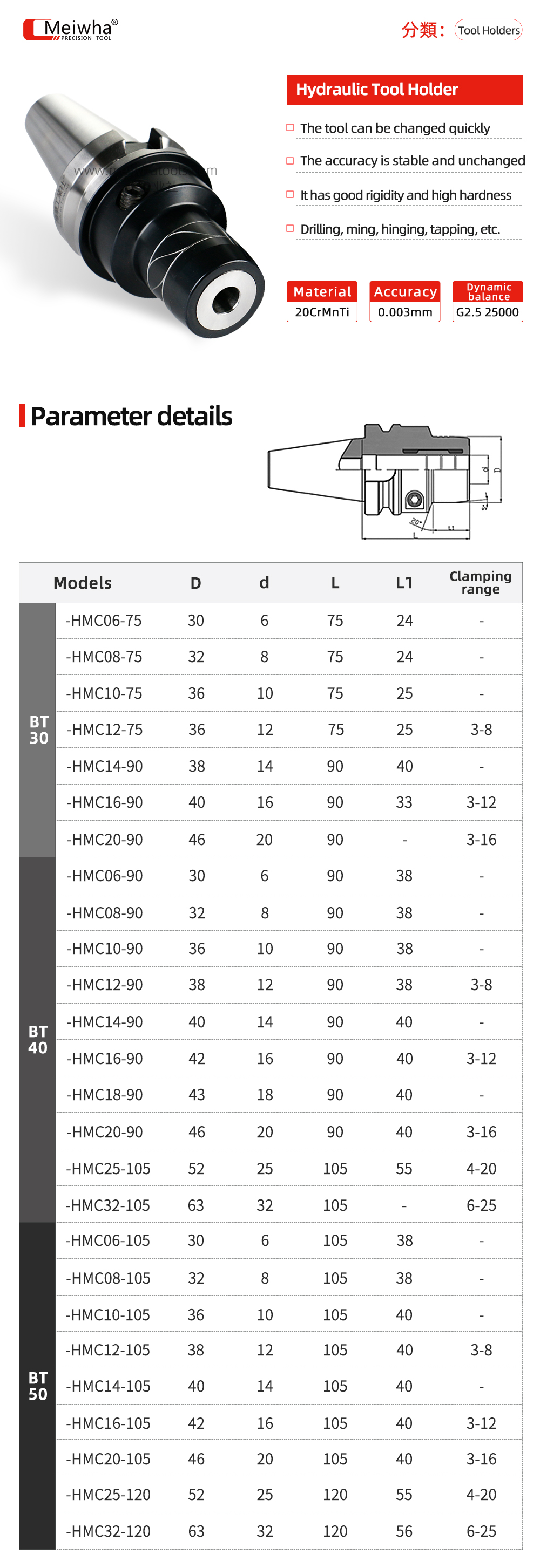

Hydraulic Tool Holder

The hydraulic chucklet adopts the principle of static pressure, and the piston applies ultra-high pressure to the fluid in the narrow oil cavity.

The clamping inner wall of the shank is elastically deformed, and the tool is clamped.
The hydraulic system inside the tool holder reduces slight vibrations due to the mechanical clamping system
and the small damage of the cutting edge of the tool,
It can significantly improve tool life and the surface quality of the machined part.
The runout ≤ at 2.5 times the diameter is 0.003mm, and the high-precision circlip can fully ensure the continuity of clamping accuracy.

Excellent clamping accuracy
The runout of 2.5 times the diameter is less than 3um, which effectively improves the quality of the machined surface and the service life of the tool.

Central cooling is possible
Central cooling can extend tool life and save tool costs.

Stable and reliable clamping force
Uniform deformation of the inner cavity of the spiral obtains a reliable clamping force.

High dynamic balance
Static balance design and dynamic balance detection are adopted.

Easy to operate Quick tool change
Quick tool changes can be achieved with just one wrench
